DIP-Schalter

Hersteller	Serie	Verpackung	Produktstatus	Schaltkreis	Anzahl der Positionen	Stromstärke (Ampere)	Spannungsstärke	Antriebstyp	Aktuatorebene	Kontaktmaterial	Kontaktoberfläche	Höhe über der Platine	Montageart	Anschlussart	Abstand	Waschbar	Funktionen	Betriebstemperatur
APEM Inc. Bourns Inc. C&K CIT Relay and Switch CTS Electrocomponents E-Switch GC Electronics Grayhill Inc. KaiFeng Electronics knitter-switch Nidec Components NKK Switches Omron Electronics Inc-EMC Div PTR HARTMANN Same Sky (Formerly CUI Devices) TE Connectivity TE Connectivity ALCOSWITCH Switches Würth Elektronik	* - 193 194 195 204 206 206RA 208 208RA 209 210 218 219 219G 220 221 7000 7100 76 7600 76HP 78 7813 7814 7829 78C 78H 79A 79B 79C 90B 90GB 90HB 90HGB 94H 94R 97 A6A A6C A6D A6DR A6E A6E-N A6ER A6FR A6H A6HF A6HR A6K A6KS A6R A6RS A6RV A6S A6S-H A6SN A6SR A6T A6TN A6TR ADE ADF ADP ADPA AMP ARE ARF ARP ATT BD BDB BP BPA CAS CD CES CFP CFS CHP CHS CJS CMS CRD CRE CS-32 CS-4 CS-7 CVS DA DBP DBS DH DHN DHP 600 DHS DIP DIP-FIX DM DMR DP DPL DPU DR DR75 DRD DRR DRS DS DS01-254 DS02-254 DS03-254 DS04-254 DS04-254-SMT DS05-127-SMT DSR DSS DTS EDS EDSP FD01 FD02 FR01 FR02 GDB GDH GDHL GDP GDR GDS IKD IKE IKH IKN JS KAC KAD KAE KAG KAJ KAN KAP KAR KAS KAT KAW KC1901 KE KG KJ KP KR KT LDN LDNA MDG MGDH MPG MRD MRSS ND ND3 NDA NDI NDP NDPL NDS NHDS P25 P36 P36S P36SMJ P36SMT P36THR P56 P60A P60AS P65 P65SMT P65THR PI PT65 RD07 RD10 RDM RDS-1045 RDS-1045-SMT RDS-1055 RDS-1055-SMT RDS-7229-ASMT RDS-7229-CR RDS-7229-D RDS-7229-JSMT RDS-7229-SMT RDS-74365 RDS-74365-45A RDS-74385-45A-SMT RDS-74385-SMT RDS-74R-254 RDS-74R-508 RDS-74R45A-254 RDS-74R45A-508 RDS1-1065-D-67 RDS1-1065-SMT-67 RDS2-1012-RA-67 RDS3-1012-RA RDS3-1065-D RDS3-1065-SMT RDS4-1012-RA-67 RDS4-1065-D-67 RDS4-1065-SMT-67 RDS5-1011-RA-67 RDS5-1065-D-67 RDS5-1065-SMT-67 RDS6-1011-RA RDS6-1065-D RDS6-1065-SMT RDS7-1011-RA-67 RDS7-1065-D-67 RDS7-1065-SMT-67 RDT RM RRD RTE RTF RW, COMAX S-1000 S-1000A S-2000A S-2050 S-4000 S-7000 S-8000 SA-5000 SA-7000 SBP SBS SC SC-2000 SD SD-1000 SD-2000 SDA SDB SH-7000 SLV SMR SMS SP SPA SRJ SRK SRM SS-10 SSH SSV STR STV TDA TDD TDP TDS WS-DISU WS-DISV WS-DITU WS-DITV WS-ROSV WS-ROTU WS-ROTV	- Bag Box Bulk Cut Tape (CT) Strip Tape & Box (TB) Tape & Reel (TR) Tray Tube	Active Discontinued at Masstock Electronics Last Time Buy Obsolete	- 10PST 3PST 4PST 4PST-2NO/2NC BCD BCD Complement BCD with Complement DP3T DPDT DPST DPST-NO/NC Gray Code Hexadecimal Hexadecimal Complement Hexadecimal with Complement Octal Octal Complement Programmable SP10T SP3T SP4T SP5T SP6T SP8T SP9T SPDT SPST	- 1 10 11 12 14 16 2 24 25 3 4 5 6 64 7 8 9	- 0.4VA 100mA 10mA 125mA 150mA 200mA 25mA 30mA 50mA 60mA	- 15VDC 16VAC/DC 16VDC 2.4VDC 20VAC/DC 20VDC 24VDC 25VDC 28VDC 30VDC 42VAC 42VAC/DC 42VDC 50VDC 5VDC 6VDC	- Breakable (Shunt) Flush Piano Rocker Rotary for Tool Rotary with Knob Rotary with Shaft Slide (Standard) Standard Toggle	- Flush Flush, Recessed Raised	- Beryllium Copper Brass Bronze Copper Copper Alloy Glass Fabric Epoxy Resin Nickel Phosphor Bronze Stainless Steel	- Gold Gold Alloy Silver Tin	- 0.053" (1.35mm) 0.057" (1.45mm) 0.059" (1.50mm) 0.060" (1.52mm) 0.061" (1.55mm) 0.062" (1.57mm) 0.063" (1.60mm) 0.064" (1.63mm) 0.067" (1.70mm) 0.079" (2.00mm) 0.081" (2.05mm) 0.083" (2.10mm) 0.087" (2.20mm) 0.089" (2.25mm) 0.091" (2.30mm) 0.091" (2.31mm) 0.093" (2.35mm) 0.094" (2.40mm) 0.098" (2.50mm) 0.100" (2.54mm) 0.102" (2.60mm) 0.104" (2.65mm) 0.106" (2.70mm) 0.110" (2.80mm) 0.112" (2.85mm) 0.114" (2.90mm) 0.118" (3.00mm) 0.119" (3.02mm) 0.120" (3.05mm) 0.122" (3.10mm) 0.123" (3.12mm) 0.125" (3.17mm) 0.126" (3.20mm) 0.130" (3.30mm) 0.134" (3.40mm) 0.136" (3.45mm) 0.138" (3.50mm) 0.140" (3.55mm) 0.141" (3.58mm) 0.142" (3.60mm) 0.143" (3.63mm) 0.144" (3.65mm) 0.144" (3.66mm) 0.146" (3.70mm) 0.148" (3.75mm) 0.149" (3.78mm) 0.150" (3.80mm) 0.150" (3.81mm) 0.151" (3.84mm) 0.152" (3.85mm) 0.154" (3.90mm) 0.155" (3.94mm) 0.157" (4.00mm) 0.159" (4.05mm) 0.160" (4.06mm) 0.161" (4.10mm) 0.162" (4.11mm) 0.163" (4.15mm) 0.164" (4.17mm) 0.165" (4.20mm) 0.166" (4.21mm) 0.167" (4.25mm) 0.168" (4.27mm) 0.169" (4.30mm) 0.170" (4.33mm) 0.173" (4.40mm) 0.174" (4.41mm) 0.175" (4.45mm) 0.176" (4.47mm) 0.177" (4.50mm) 0.178" (4.52mm) 0.179" (4.55mm) 0.180" (4.57mm) 0.181" (4.60mm) 0.183" (4.65mm) 0.184" (4.67mm) 0.185" (4.70mm) 0.189" (4.80mm) 0.190" (4.83mm) 0.195" (4.95mm) 0.196" (4.99mm) 0.197" (5.00mm) 0.199" (5.05mm) 0.200" (5.08mm) 0.201" (5.10mm) 0.203" (5.15mm) 0.204" (5.18mm) 0.205" (5.20mm) 0.209" (5.30mm) 0.210" (5.33mm) 0.211" (5.35mm) 0.213" (5.40mm) 0.214" (5.45mm) 0.215" (5.45mm) 0.215" (5.46mm) 0.217" (5.50mm) 0.219" (5.55mm) 0.220" (5.59mm) 0.222" (5.64mm) 0.224" (5.70mm) 0.225" (5.72mm) 0.226" (5.74mm) 0.228" (5.80mm) 0.230" (5.85mm) 0.232" (5.90mm) 0.236" (6.00mm) 0.244" (6.20mm) 0.246" (6.25mm) 0.250" (6.35mm) 0.252" (6.40mm) 0.256" (6.50mm) 0.258" (6.55mm) 0.260" (6.60mm) 0.262" (6.66mm) 0.264" (6.70mm) 0.265" (6.73mm) 0.267" (6.78mm) 0.268" (6.80mm) 0.268" (6.81mm) 0.270" (6.85mm) 0.271" (6.88mm) 0.272" (6.90mm) 0.273" (6.93mm) 0.274" (6.95mm) 0.275" (6.99mm) 0.276" (7.00mm) 0.277" (7.05mm) 0.278" (7.06mm) 0.280" (7.10mm) 0.283" (7.20mm) 0.284" (7.21mm) 0.287" (7.30mm) 0.290" (7.37mm) 0.291" (7.39mm) 0.291" (7.40mm) 0.292" (7.41mm) 0.293" (7.45mm) 0.294" (7.47mm) 0.295" (7.50mm) 0.297" (7.54mm) 0.298" (7.57mm) 0.299" (7.60mm) 0.301" (7.65mm) 0.303" (7.70mm) 0.305" (7.75mm) 0.307" (7.80mm) 0.308" (7.82mm) 0.309" (7.85mm) 0.311" (7.90mm) 0.312" (7.92mm) 0.315" (8.00mm) 0.316" (8.03mm) 0.317" (8.05mm) 0.319" (8.10mm) 0.321" (8.15mm) 0.322" (8.18mm) 0.327" (8.30mm) 0.329" (8.35mm) 0.330" (8.38mm) 0.331" (8.40mm) 0.334" (8.48mm) 0.335" (8.50mm) 0.337" (8.56mm) 0.340" (8.64mm) 0.343" (8.70mm) 0.344" (8.75mm) 0.346" (8.80mm) 0.354" (9.00mm) 0.358" (9.10mm) 0.359" (9.12mm) 0.360" (9.14mm) 0.362" (9.20mm) 0.370" (9.40mm) 0.374" (9.50mm) 0.378" (9.60mm) 0.380" (9.64mm) 0.381" (9.68mm) 0.385" (9.78mm) 0.386" (9.80mm) 0.390" (9.90mm) 0.393" (9.98mm) 0.394" (10.00mm) 0.394" (10.01mm) 0.395" (10.02mm) 0.398" (10.10mm) 0.400" (10.16mm) 0.402" (10.20mm) 0.406" (10.30mm) 0.409" (10.39mm) 0.413" (10.50mm) 0.414" (10.51mm) 0.417" (10.60mm) 0.420" (10.67mm) 0.425" (10.80mm) 0.426" (10.82mm) 0.430" (10.92mm) 0.433" (11.00mm) 0.434" (11.02mm) 0.437" (11.10mm) 0.460" (11.68mm) 0.463" (11.75mm) 0.464" (11.79mm) 0.465" (11.80mm) 0.467" (11.86mm) 0.469" (11.90mm) 0.470" (11.94mm) 0.472" (12.00mm) 0.480" (12.19mm) 0.495" (12.57mm) 0.508" (12.91mm) 0.520" (13.20mm) 0.531" (13.49mm) 0.535" (13.59mm) 0.543" (13.80mm) 0.555" (14.10mm) 0.618" (15.70mm) 0.626" (15.90mm) 0.634" (16.10mm) 0.638" (16.20mm) 1.104" (28.05mm) 1.476" (37.50mm)	- Panel Mount Panel Mount, Right Angle Surface Mount Surface Mount, Right Angle Through Hole Through Hole, Reverse Through Hole, Right Angle	- Gull Wing J Lead PC Pin	- 0.039" (1.00mm) 0.042" (1.08mm) 0.050" (1.27mm), Half 0.051" (1.30mm) 0.083" (2.10mm) 0.100" (2.54mm) 0.100" (2.54mm), Full 0.200" (5.08mm)	- No Yes	- Epoxy Sealed Terminals Epoxy Sealed Terminals, Tape Seal IP64 - Dust Tight, Water Resistant IP67 - Dust Tight, Waterproof Position Identification Line Position Identification Line, Tape Seal Process Sealed Sealed Sealed - Flux Protection Tape Seal	- -10°C ~ 60°C -10°C ~ 70°C -10°C ~ 85°C -20°C ~ 60°C -20°C ~ 70°C -20°C ~ 85°C -25°C ~ 70°C -25°C ~ 75°C -25°C ~ 80°C -25°C ~ 85°C -25°C ~ 95°C -30°C ~ 60°C -30°C ~ 80°C -30°C ~ 85°C -30°C ~ 90°C -40°C ~ 100°C -40°C ~ 105°C -40°C ~ 80°C -40°C ~ 85°C -50°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C -55°C ~ 85°C -60°C ~ 125°C

Alles zurücksetzen

Alles anwenden

Ergebnis

Herst.-Teilenr.	Verfügbarkeit	Preis	Menge	Datenblatt	Serie	Verpackung	Produktstatus	Schaltkreis	Anzahl der Positionen	Stromstärke (Ampere)	Spannungsstärke	Antriebstyp	Aktuatorebene	Kontaktmaterial	Kontaktoberfläche	Höhe über der Platine	Montageart	Anschlussart	Abstand	Waschbar	Funktionen	Betriebstemperatur
429427320916 SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik	90	-	RFQ	Datenblatt	WS-ROTU	Tube	Active	Hexadecimal	16	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.394" (10.00mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
429427320911 SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik	86	-	RFQ	Datenblatt	WS-ROTU	Tube	Active	BCD Complement	10	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.394" (10.00mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
428427520917 SW ROTARY DIP HEX COMP 0.15A 24V Würth Elektronik	68	-	RFQ	Datenblatt	WS-ROTU	Tube	Active	Hexadecimal Complement	16	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.394" (10.00mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
76RSB05ST SWITCH ROCKER DIP SPST 0.15A 30V Grayhill Inc.	85	-	RFQ	Datenblatt	76	Tube	Active	SPST	5	150mA	30VDC	Rocker	Flush, Recessed	Copper Alloy	Gold	0.292" (7.41mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
78B09T SWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc.	68	-	RFQ	Datenblatt	78	Tube	Active	SPST	9	150mA	30VDC	Slide (Standard)	Raised	Copper Alloy	Gold	0.315" (8.00mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-40°C ~ 85°C

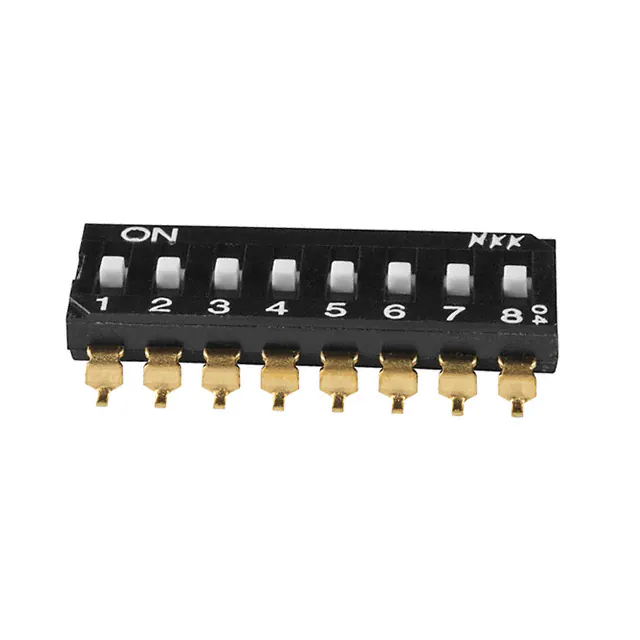

JS0208AP4 SWITCH SLIDE DIP SPST 0.025A 24V NKK Switches	83	-	RFQ	Datenblatt	JS	Bulk	Active	SPST	8	25mA	24VDC	Slide (Standard)	Raised	Beryllium Copper	Gold	0.170" (4.33mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 70°C
429427520916 SWITCH ROTARY DIP HEX 0.15A 24V Würth Elektronik	57	-	RFQ	Datenblatt	WS-ROTU	Tube	Active	Hexadecimal	16	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.394" (10.00mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	-	-40°C ~ 85°C
428527520911 SW ROTARY DIP BCD COMP 0.15A 24V Würth Elektronik	90	-	RFQ	Datenblatt	WS-ROTV	Tube	Active	BCD Complement	10	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.256" (6.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C
428527520910 SWITCH ROTARY DIP BCD 0.15A 24V Würth Elektronik	40	-	RFQ	Datenblatt	WS-ROTV	Tube	Active	BCD	10	150mA	24VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.256" (6.50mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	IP67 - Dust Tight, Waterproof	-40°C ~ 85°C
DRR7010C SWITCH ROTARY DIP BCD 0.03A 15V Nidec Components Corporation	59	-	RFQ	Datenblatt	DR	Tube	Active	BCD	10	30mA	15VDC	Rotary for Tool	Flush, Recessed	-	Gold	0.311" (7.90mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Process Sealed	-25°C ~ 85°C
78RB10ST SWITCH SLIDE DIP SPST 0.15A 30V Grayhill Inc.	66	-	RFQ	Datenblatt	78	Tube	Active	SPST	10	150mA	30VDC	Slide (Standard)	Flush, Recessed	Copper Alloy	Gold	0.265" (6.73mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
A6RS-161RF SWITCH ROTARY DIP HEX 0.025A 24V Omron Electronics Inc-EMC Div	96	-	RFQ	Datenblatt	A6RS	Tube	Active	Hexadecimal	16	25mA	24VDC	Rotary for Tool	Flush, Recessed	-	-	0.185" (4.70mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 80°C
76PSB05ST SWITCH PIANO DIP SPST 0.15A 30V Grayhill Inc.	93	-	RFQ	Datenblatt	76	Tube	Active	SPST	5	150mA	30VDC	Piano	Raised	Copper Alloy	Gold	0.301" (7.65mm)	Through Hole, Right Angle	PC Pin	0.100" (2.54mm), Full	Yes	Tape Seal	-40°C ~ 85°C
A6RS-101RS-P SWITCH ROTARY DIP BCD 0.025A 24V Omron Electronics Inc-EMC Div	57	-	RFQ	Datenblatt	A6RS	Tape & Reel (TR)	Active	BCD	10	25mA	24VDC	Rotary with Shaft	Raised	-	-	0.472" (12.00mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 80°C
FR01KR10P-S SWITCH ROTARY DIP BCD 0.1A 5V NKK Switches	49	-	RFQ	Datenblatt	FR01	Tube	Active	BCD	10	100mA	5VDC	Rotary with Shaft	Raised	Copper Alloy	Gold	0.426" (10.82mm)	Through Hole	PC Pin	0.100" (2.54mm), Full	No	-	-25°C ~ 85°C
A6S-0104-H SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	82	-	RFQ	Datenblatt	A6S-H	Tube	Active	SPST	10	25mA	24VDC	Slide (Standard)	Raised	-	Gold	0.173" (4.40mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-20°C ~ 70°C
A6S-0102-H SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	80	-	RFQ	Datenblatt	A6S-H	Tube	Active	SPST	10	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.146" (3.70mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	Yes	Tape Seal	-20°C ~ 70°C
A6HF-8102 SWITCH SLIDE DIP SPST 0.025A 24V Omron Electronics Inc-EMC Div	48	-	RFQ	Datenblatt	A6HF	Tube	Active	SPST	8	25mA	24VDC	Slide (Standard)	Flush, Recessed	-	Gold	0.091" (2.30mm)	Surface Mount	Gull Wing	0.050" (1.27mm), Half	Yes	Tape Seal	-30°C ~ 85°C
FR02FR10P SWITCH ROTARY DIP BCD 0.1A 5V NKK Switches	68	-	RFQ	Datenblatt	FR02	Bulk	Active	BCD	10	100mA	5VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.154" (3.90mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 85°C
FR02FR16P SWITCH ROTARY DIP HEX 0.1A 5V NKK Switches	63	-	RFQ	Datenblatt	FR02	Bulk	Active	Hexadecimal	16	100mA	5VDC	Rotary for Tool	Flush, Recessed	Copper Alloy	Gold	0.154" (3.90mm)	Surface Mount	Gull Wing	0.100" (2.54mm), Full	No	-	-25°C ~ 85°C

Total 2530 Record«Prev 1... 105 106 107 108109110 111 112...127 Next»

Kategorieübersicht

DIP-Schalter Produkte und Auswahlhilfe

DIP-Schalter werden in Industrieautomation, Automobilelektronik, Kommunikationstechnik, Unterhaltungselektronik, erneuerbaren Energien und vielen weiteren elektronischen Systemen eingesetzt. Wir bieten Produkte verschiedener Hersteller, Gehäuseformen und Spezifikationen zur einfachen Auswahl und Beschaffung.

Filtern Sie DIP-Schalter nach Hersteller, wichtigen Parametern, Verfügbarkeit und Datasheet. Wenn das gewünschte Modell nicht aufgeführt ist, senden Sie uns eine Anfrage. Wir unterstützen Sie bei Verfügbarkeit, Lieferzeit und möglichen Alternativen.

FAQ

Wie wähle ich den passenden DIP-Schalter aus?

Prüfen Sie zuerst elektrische Parameter, Gehäuse, Betriebstemperatur, Einsatzbedingungen und Herstelleranforderungen. Danach können Verfügbarkeit und Lieferzeit verglichen werden.

Kann ich anhand des angezeigten Lagerbestands direkt bestellen?

Bestände können sich ändern. Für Projekt- oder Mengenbedarf empfehlen wir eine Anfrage zur Bestätigung von aktuellem Bestand, Preis und Lieferzeit.

Was kann ich tun, wenn die gewünschte Teilenummer nicht gelistet ist?

Senden Sie uns Teilenummer und benötigte Menge. Wir können schwer verfügbare Teile prüfen und passende Alternativen anhand der Spezifikationen vorschlagen.
